Description

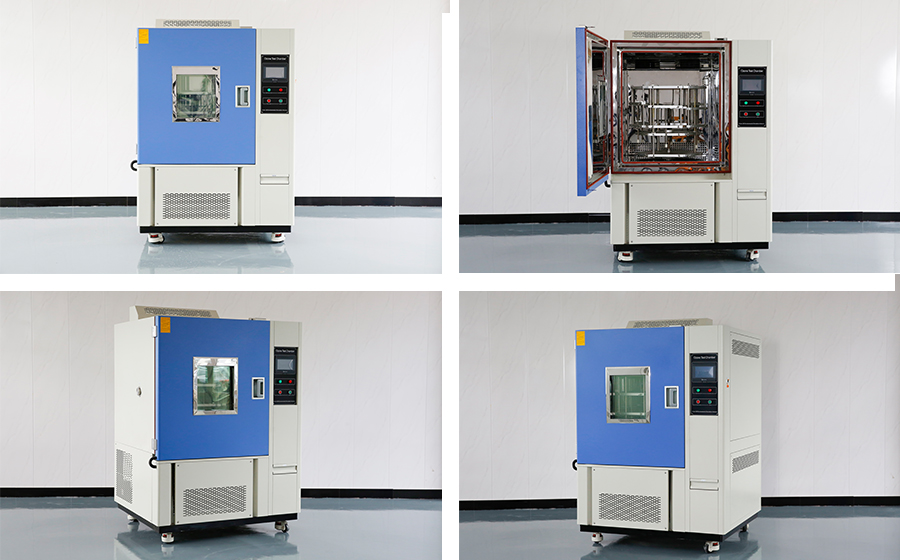

ASTM D1171 static stretching cable aging ozone production chamber simulates and strengthens the conditions of atmosphere ozone, study the role of the law of ozone on rubber(cable), rapidly identification and evaluation of rubber resistance to ozone aging properties and protective efficacy of anti-ozone agents, and then take effective anti-aging measures to improve the life of the rubbers.
Technical Parameters
| Name | ASTM D1171 static stretching cable aging ozone production chamber |
| Model | OC-250 | OC-500 | OC-800 | OC-010 |
| Internal Dimension (mm) | 600*600*600 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
| Overall Dimension (mm) | 960*1150*1860 | 1180*1350*2010 | 1280*1550*2110 | 1500*1550*2110 |
| Interior Volume (L) | 250 | 500 | 800 | 1000 |
| Temperature Range | 0℃ ～ +100 ℃ |
| Humidity Range | 30% ~ 98% RH |
| Cooling Rate | Ambient ~ 0℃ within 20 min |
| Ozone Concentration | 1～1000PPHM |
| Sample Holder Rotate Speed | 0~10 r/min |
| Airflow Rate | 0 ~ 60L/min |
| Clamps Tensile Stretch | 5%～35% |

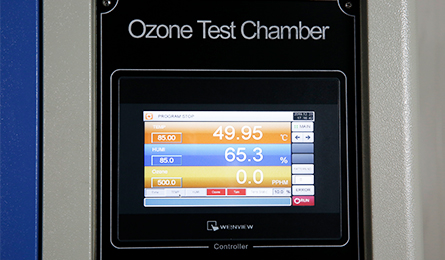

| Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link |
| Gas Sensor | Ozone gas sensor |
| Ozone Generator | Silent discharge type ozone generator |
| Sample Holder | Static + dynamic combined sample holder |
| Power Supply | 380V 50Hz |
| Standard | ISO1431;ASTM 1149；IEC 60903 ;IEC60811-403;JIS K6259;ASTM D1171 |
| Maximum Noise | 65 dBA |
| Environmental Conditional | 5℃～+35 ℃ ≤85% RH |
Advantages of Cable Test Chamber
1.Ozone Concentration:1～1000PPHM
2.Sample Holder Rotate Speed:0~10 r/min
3.Clamps Tensile Stretch:5%～35%
wire ozone test machine: test the performance of the cable exposed to the ozone environment and the degree of cracking.
 |  |

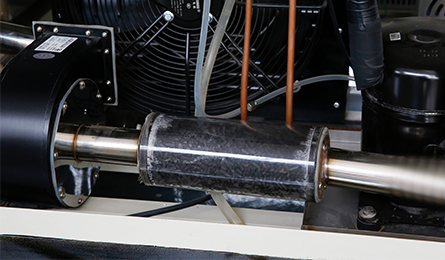

| Ozone environment machine,The sample rack meets the ASTM D 1171 test standard | The ozone gas treatment unit use NAOH to completely remove ozone emissions |
Features
1. Stainless steel inside and outside for cable aging ozone production chamber
2. Outside made iron with powder coating
3. Durable ozone generator
4. Insulation material is High-density glass fiber cotton
5.Bottom is universal round wheel and fixed foot
6. Window materials is multilayer steel-glass, the inside is chip conductive
7.Refrigeration compressor over oil pressure protection
8. Lack of Anti-phase protection system. Overload protection for circulation fan motor
LIB Service
cable aging ozone production chamber
1.Installation and commissioning
2.Installation, operation and performance qualification
3.Support and training (on-site)
4.Post warranty service
5.Preventive maintenance contracts
6.Availablity of spare parts and consumables
