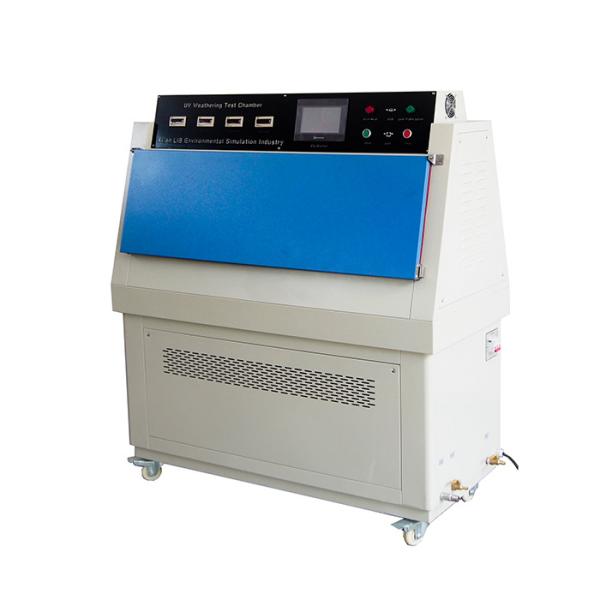

95％ RH UV Weather Resistance Test Chamber Spraying Water

Brand Name : LIB

Model Number : UV-SI-260

Certification : CE,RoHS,

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram,paypal

Supply Ability : 140 sets / quarter

Delivery Time : 3-12 days

Packaging Details : Wooden Box standard export package

UV Lamp : UVA 340,UVB313

Temperature range : Ambient~90℃ ±2℃

Black Panel Temperature : BPT 30~80℃

UV wavelength : 290 ~ 400nm

Water Cycle : Water Spray Cycle system

Humidity range : ≥95％R.H ±2%R.H

Contact Now

UV Weather Resistance Test Chamber

Description

UV weather resistance test chamber,UV light represents roughly 5% of the sunlight but it is responsible for most of the polymer degradation.

Materials are often tested in chambers which simulate only the shortest wavelengths (UV).

The UV-B range includes the shortest wavelengths found in sunlight. Therefore, for many applications,Resistance test chamber is a fast and efficient method.

Specification

Name	UV Weather Resistance Test Chamber
Model	UV-260	UV-SI-260
Internal dimensions (mm)	4501170500	4501170500
Overall dimensions (mm)	68013001500	68013001500
Capacity of test specimens	48 pieces Individual specimen size is 75mm * 150mm	48 pieces Individual specimen size is 75mm *150mm
Controller	Programmable color display touch screen controller	Programmable color display touch screen controller
Temperature range	Ambient~90℃ ±2℃	Ambient~90℃ ±2℃
Humidity range	≥95％R.H ±2%R.H	≥95％R.H ±2%R.H
Black Panel Temperature	BPT 30~80℃	BPT 30~80℃
Irradiation Source	Fluorescent UV lamps (8) - 40 W	Fluorescent UV lamps (8) - 40 W
UV wavelength	290 ~ 400nm	290 ~ 400nm
Irradiance Control	N/A	0.3 ~ 20 W/㎡(340 nm / 313 nm)
Water Spray	Spraying water	Spraying water
Distance of Specimen and lamp	50mm	50mm
Nominal power	5000W	5500W
Power Supply	380V 50HZ	380V 50HZ

Design Details


Sample Shelf	8 UV Lamp

Programmable controller	Automatic water inlet

Environmental Conditions that Contribute to Weathering Include

Weather resistance chamber

☑ Humidity

☑ Temperature (including sudden temperature changes)

☑ Altitude

☑ Water

☑ Salt spray

☑ UV radiation

95％ RH UV Weather Resistance Test Chamber Spraying Water
